Product description

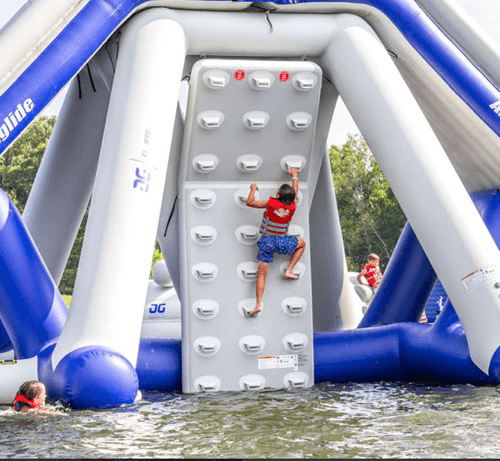

El Jefe Climbing Wall

El Jefe is a versatile aquapark feature that supports one or two additional Climbing Wall accessories. Athletic climbers are immediately drawn to the El Jefe Climbing Wall which will challenge even the best of them. Strong molded climbing handles and lightly textured toeholds provide the only support for attempting this vertical slab, which requires strength, skill and persistence. The top 1/3rd of the ascent overhangs the rest, demanding even more from tired climbers and adding fun to the dismount. El Jefe Climbing wall can be attached to El Jefe Signature Feature on either side, allowing for optimal sight lines.

Key Tech Features
-Welded Dropstitch –15cm welded dropstitch construction with 3-layer seams.
-Duratex – Commercial-grade material optimized for durability, weld strength and UV-resistance.
-Interlock 5 – 1 secure and tamper-free 5-ring connection plus 4 additional attachment points using our 2-Step Vario Strap system.
-Halkey-Roberts valves – With tamper-proof cap for quick, effective inflation/ deflation.

Key User Activities
-Climb – Advanced climbing lines with overhanging section make this one challenging feature!
-Jump – Make the climb, earn the reward: a breath-taking drop to the water!

Technical Specifications
Max Weight: 250 lb. (113 kg) max weight.
Capacity: 1 Adults / 1 Child
Weight: 70.5 lb. (30.2 kg)
Material: 15cm Woven Dropstitch
Dimensions: 6’-0" L (183 cm) x 0’-6" W (15 cm) x 13’-3" H (406 cm).
Minimum Required Water Depth: 9’ 7" (2.93 m)
Minimum Distance from Shore: 15’ (4.5 m)
Minimum Required Total Anchor Weight: No anchors required for this item
Anchor Rings: 0
Accessory Attachment D-rings: 5 (bottom), 2 (sides), 2 (top).

Product Notes
Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
